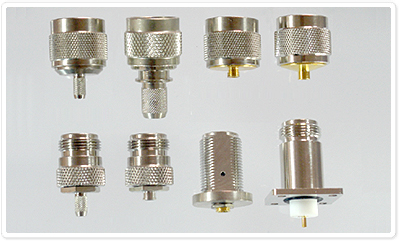

8. N CONNECTOR (Standard coaxial connector)
|
| |
|
| |
|
동축 커넥터로 MIL-C-39012에 준한다.
견고한 결합성을 갖고 있어 Panel type등과 같이 외부돌출 형식으로 많이 사용된다. |
|
| |
 |
SPECIFICATION |
| |
|
|
| |
ELECTRICAL
DATA
|
|
TEST REQUIREMENTS |
| |
Impedance
|
|
50Ω |
|
| |
Frequency range
-flexible cables
-semi-rigid cables |
|
DC 11GHz Max
DC 18GHz Max |
|
| |
V S W R |
|
≤ 1.2 |
|
| |
Dielectric withstanding voltage(at sea level)
|
|
2.5 kV rms, 50 Hz |
|
| |
Working voltage (at sea level)
|
|
≤ 1.0 V rms, 50 Hz |
|
| |
Insulation resistance |
|
≥ 5000 MΩ |
|
| |
Contact resistance
-center contact
-out contact |
|
≤ 1.0 mΩ
≤ 1.0 mΩ |
| |
MECHANICAL DATA |
|
TEST REQUIREMENTS |
| |
Coupling nut torque
-recommended
-proof torque
|
|
0.68 Ncm~1.13 Ncm/6.0 in.lbs~10.0 in.lbs
1.7 Ncm / 15.0 in lbs |
|
| |
Coupling nut retention force
|
|
≥ 450 N / 101.2 in. lbs |
|
| |
Contact captivation
|
|
≥ 28 N / 6.3 lbs |
|
| |
Durability(matings)
|
|
≥ 500 |
| |
ENVIRONMENTAL DATA |
|
EQUIVALENT MIL TEST CONDITIONS |
| |
Temperature range |
|
- 65℃ ~ +165℃ / -89° F ~ + 329° F |
|
| |
Climatic category acc. To IEC
|
|
|
|
| |
Thermal shock
|
|
MIL-STD-202,Method 107, Condition B |
|
| |
Moisture resistance |
|
MIL-STD-202,Method 106 |
|
| |
Corrosion
|
|
Saltspray test acc . to MIL-STD-202,
Method 101, Condition B |
|
| |
Vibration |
|
MIL-STD-202, Method 204, Condition B |
|
| |
Shock |
|
MIL-STD-202, Method 213, Condition I |
|
| |
|
Material Data |
| |
|
|
| |
CONNECTOR
PART |
|
MATERIAL |
|
PLATING |
| |
Bodies, Pin contact
|
|
brass
|
|
Gold ,Nickel
|
|
| |
Female contacts
|
|
beryllium-copper |
|
Gold |
|
| |
Crimp ferrules
|
|
brass
|
|
Gold ,Nickel |
|
| |
Insulation
|
|
PTFE
|
|
|
|
| |
Gaskets
|
|
Silicone rubber
|
|
|
|
| |
|
Straight plug |
|
|
| |
|
| 품
번 |
CABLE SPEC (XX) |
| JI0840-12XX
|
RG-58/U, RG-214/U
|
| |
RG-402/U, RG-405/U 등등 |
|
| |
|
Right angle plug |
|
|
| |
|
| 품
번 |
CABLE SPEC (XX) |
| JI0848-12XX
|
RG-58/U, RG-214/U
|
| |
RG-402/U, RG-405/U 등등
|
|
| |
|
Straight jack |
|
|
| |
|
| 품
번 |
CABLE SPEC (XX) |
| JI0841-12XX
|
RG-58/U, RG-214/U
|
| |
RG-402/U, RG-405/U 등등 |
|
| |
|
Panel Mount Jack |
|
|
| |
|
| 품
번 |
pcb mount size |
| JI0845-10XX
|
본도 외 다양한 설계 가능 |
|
|
|
