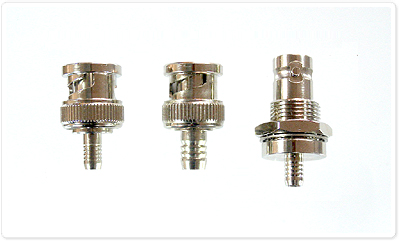

  6. BNC CONNECTOR


돌기 잠금형 (Bayonet coupling) 체결방식으로, 임피던스는 50Ω과 75Ω 설계가 가능하다.
50Ω은 2GHz 이하에 75Ω은 1GHz 이하에 사용된다.

Cable assembiy, Board mount, Panel mount 등 다양한 형태로 설계가 가능하다.

  SPECIFICATION



ELECTRICAL DATA

TEST REQUIREMENTS
  Impedance
   50Ω
  Frequency range   DC 4GHz Max.
  V S W R   ≤ 1.2
  Dielectric withstanding voltage(at sea level)
   1.5 kV rms, 50 Hz
  Working voltage (at sea level)
   ≤ 500 V rms, 50 Hz
  Insulation resistance   ≥ 5000 MΩ
  Contact resistance
-center contact
-out contact
≤ 1.5 mΩ
≤ 1.0 mΩ

MECHANICAL DATA
TEST REQUIREMENTS
  Coupling nut torque
   7 Ncm ~ 28 Ncm / 0.6 in. lbs ~ 2.5 in. lbs
  Coupling nut retention force
   ≥ 450 N / 101.2 in. lbs
  Contact captivation
   ≥ 27 N / 6.1 lbs
  Durability(matings)
   ≥ 500

ENVIRONMENTAL DATA
EQUIVALENT MIL TEST CONDITIONS
  Temperature range   - 65℃ ~ +165℃ / -85° F ~ + 329° F
  Climatic category acc. To IEC
   55/155/21
  Thermal shock
   MIL-STD-202,Method 107, Condition B
  Moisture resistance   MIL-STD-202,Method 106
  Corrosion
   Saltspray test acc . to MIL-STD-202,
Method 101, Condition B
  Vibration   MIL-STD-202, Method 204, Condition B
  Shock   MIL-STD-202, Method 213, Condition G


  Material Data



CONNECTOR PART
MATERIAL
PLATING

Bodies, Male pin contact
brass
Nickel, Gold

Female Pin

beryllium-copper

Gold

Crimp ferrules
brass
Gold

Insulators
PTFE

Gaskets

Silicone rubber



Straight plug


품 번
CABLE SPEC (XX)
JI0740-12XX
RG-316/U, RG-58 등등


Panel Mount Plug


품 번
panel mount size
JI0744-10XX
본도 외 다야한 설계 가능

RG-405/U 등등


Straight Bulkhead jack


품 번
CABLE SPEC (XX)
JI0741-12XX
RG-316/U, RG-58 등등


Pcb mount Jack


품 번
pcb mount size
JI0745-10XX
본도 외 다양한 설계 가능
